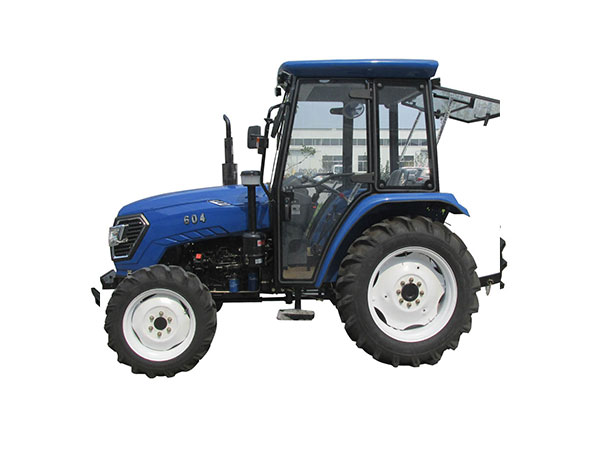

SPECIFICATIONS FOR 60 HP TRACTORS
|
|||
(mm)Dimensions of tractor
|
Length (to front ballast)
|
3280mm
|
|
Width
|
1600mm
|
||
Height (to the exhaust vent)
|
1980mm
|
||
Tread
|
1300mm
|
||
Axle Base
|
1760mm
|
||
Min.Ground Clearance
|
360mm
|
||
|
Model
|
QC4102
|
|
Type
|
Vertical Water Cooledand 4-stroke
|
||
Rated Power(kw)
|
44.4KW
|
||
Rated speed (r/min)
|
2400
|
||
Fuel
|
Diesel Oil
|
||
|
Front Wheel
|
8.3-20
|
|
Rear Wheel
|
12.4/28
|
||
Structure weight (kg)
|
1580Kg
|
||
Clutch
|
Dry-friction,single stage or Dry-friction,Two Stage
|
||
Steering
|
Hydraulic Type
|
||
Transmission Type
|
(4+1)x2
|
||
Suspension Type
|
Rear three-point suspension Class I
|
||
|
Type and Rev
|
540/760 or 540/1000
|
|
|
I38 Rectangle Spline With 8 teeth (8x28.91x38x8.69)
|
